17D Intermediate Copper Wire Drawing Line Chain Type for Cable Production

HENGSHUI XINDACHANG ELECTRICIAN MACHINERY CO.,LTD
Contact Now

17D Intermediate Copper Wire Drawing Line Chain Type for Cable Production

  • 1
  • 2

Brand Name : JD

Model Number : 17D

Certification : ISO9001

Place of Origin : China

MOQ : 1Set

Price : USD 10000-20000/Set

Payment Terms : T/T, L/C, D/A, D/P, Western Union, MoneyGram

Supply Ability : 30 Sets/Month

Delivery Time : In 40-50 days after received your advanced payment

Packaging Details : Export packing the end of the sleepers fixed machinery to do non-slip, with bubble wrap anti-collision, external plastic packaging waterproof moisture

Materials : Copper Rod

Inlet wire Dia : 2.5mm-3.5mm

Outlet wire Dia : 0.4mm-1.6mm

Drawing number : 17

Max drawing speed : 1800m/min

Warranty : One year

Factory history : Specialized in this field for over 15 years

Our aim : Make clients the least invest,the highest returns

Usage : Produce wire cable

After-sales Service : Engineers available to service machinery overseas

Contact Now

       17D Intermediate Copper Wire Drawing Line Chain Type  For Cable Production



1.Usage



The machine is used for drawing copper wire from 2.5mm-3.5mm to 0.4-1.6mm.



2.Main features of our product:



1. Manufacturer(developing history more than 15 years)



2. ISO approving,ISO9001-2008



3. Best after sale service(one year warranty,longtime maintenance,supply all the spare parts)



4. Advanced technique



5. We can design the machine that meet your requirements



Structure: the drawing equipment consists of main reduction box, die casing, wheel frame, wire brace



and electeical control system. The drawing blocks are verticaly fixed in sealed box body





Product Information



Technique Parameter :





machine type               17MD                17D
inlet diameter(mm)             φ2.5-φ3.2            φ2.5-φ3.2
outlet diameter(mm)              φ0.4-φ1.2             φ0.4-φ1.2
drawing line speed              1200m/min            1200m/min
drawing dies No./Max                    17                  17
slip ratio of m/c                   15%                  18%
fix speed capstan slip ratio                   11%                 12.5%
capstan                                      tungsten
capstan dia.(max.)(mm)                   φ257                φ260
fix speed capstan dia.(mm)                   φ254                 φ280
frame               Ironed cast               Ironed cast
main motor    37KW three phase     37KW three phase
spooler motor   11KW three phase      11KW three phase
revise system                     PID synchronous spooler
inverter control                       Dual inverter control
transmission type                      chain              chain
send-out method                                    over head
traversing unit                           flat belt + timing motor
tension control                      pneumatic balance by swing arm
lubrication system of wire drawing                          spray           spray
suitable diameter of spool              φ500mm φ630mm           φ500mm φ630mm
capacity for wire collecting           100-400KGS 100-400KGS
bobbin loading & unloading type                                       shaft type
power source                    380V              380V
brake                                pneumatic brake
machine dimension 3500L×1200W×1250H 3500L×1200W×1250H
machine weight                 4800kgs               4600kgs









































































Main Features:



The drawing machine body is iron casted, transmit by chain.



Drawing capstan is coated by tungsten carbide.



Small footprint, easy to operate.





Product Pictures

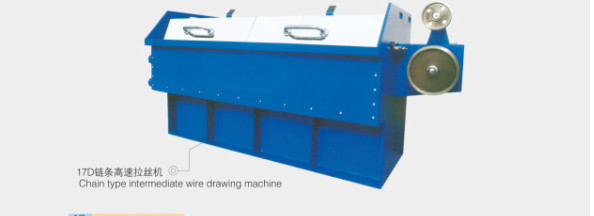

17D Intermediate Copper Wire Drawing Line Chain Type for Cable Production

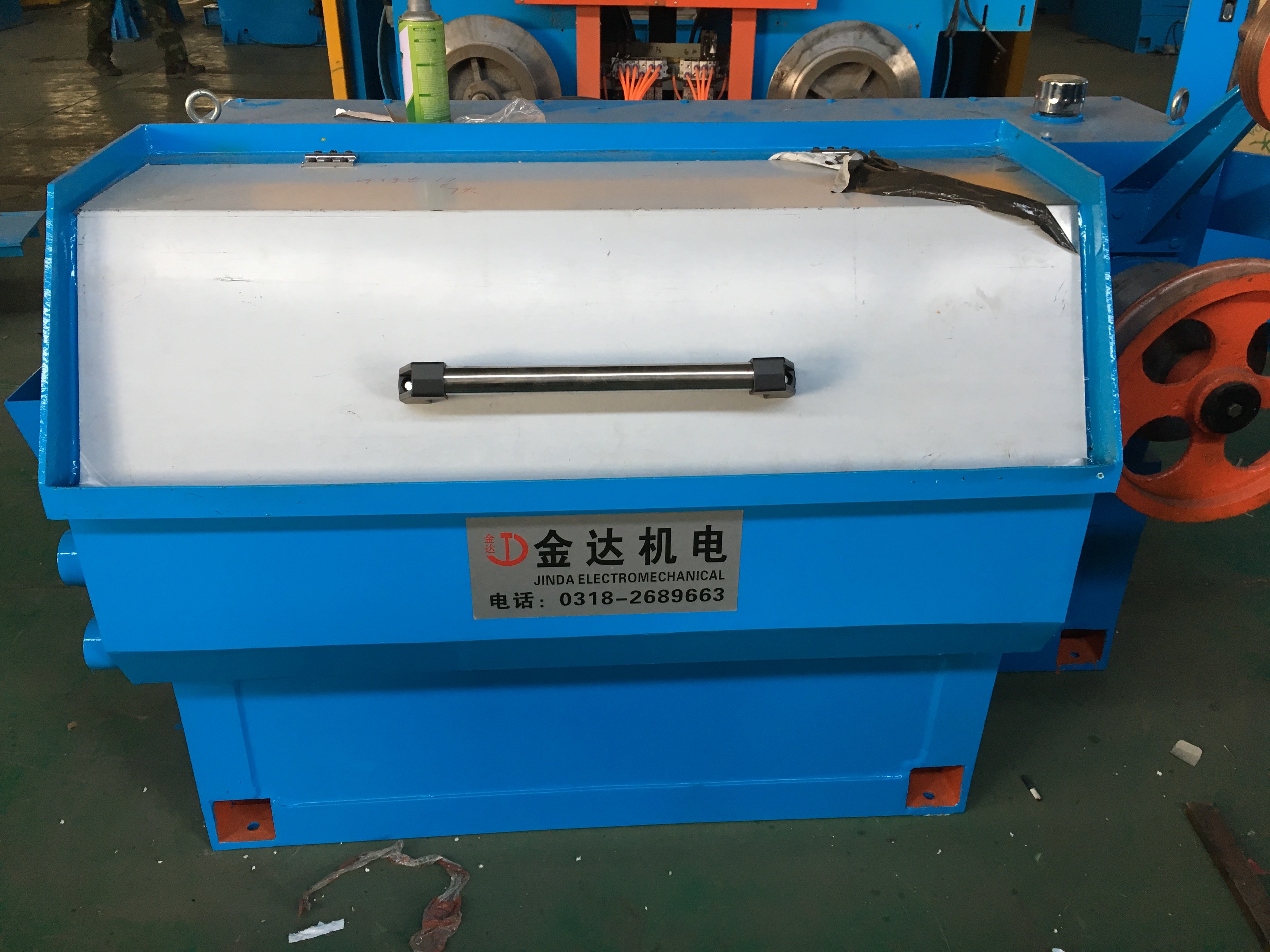

17D Intermediate Copper Wire Drawing Line Chain Type for Cable Production

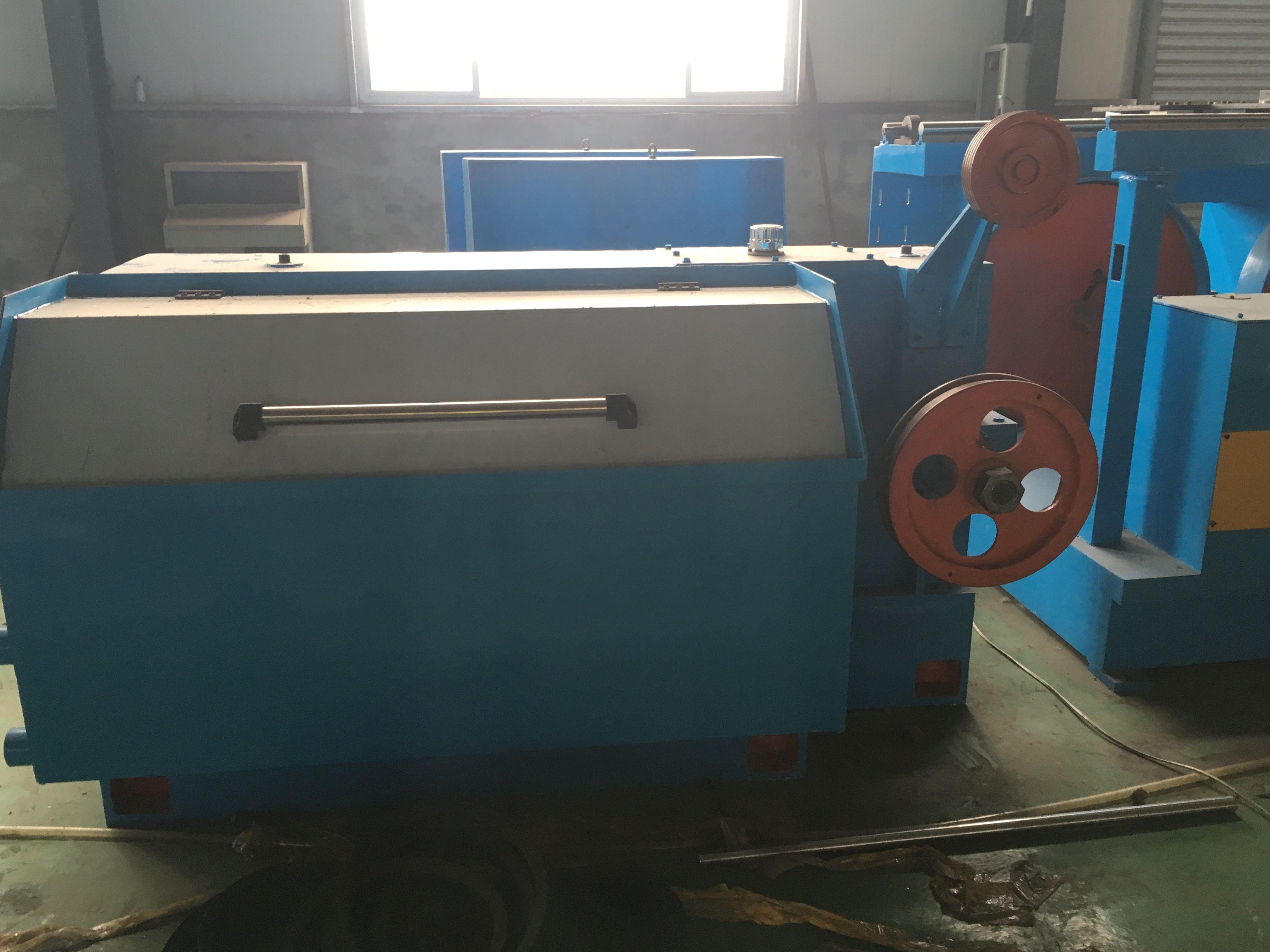

17D Intermediate Copper Wire Drawing Line Chain Type for Cable Production

3.Packaging & Shipping

17D Intermediate Copper Wire Drawing Line Chain Type for Cable Production


4.Product Process

 17D Intermediate Copper Wire Drawing Line Chain Type for Cable Production



5.Our Factory



Long history



We have 15 years manufacturer history, companying with good reputation, since our factory set up in 2003.



Supply ability:



We specialize in design machines according customers' requirements. 300 sets of machines can be supplied/month.



Equipment working site:



You are welcomed to visit our factory, the machines can be operated on site, and you will master the usage of machines nearby.



Successful experience / Markets:



Be up to the international level. Our lines and related complete equipment have been exported to  India,



Indonesia, Morocco, South Africa, Algeria,Mexcio,Russia ,Uzbekistan,bangladesh etc.



17D Intermediate Copper Wire Drawing Line Chain Type for Cable Production

6.Engineers for machines installation and debugging in Uzbekistan

17D Intermediate Copper Wire Drawing Line Chain Type for Cable Production



7.The Exhibition



17D Intermediate Copper Wire Drawing Line Chain Type for Cable Production

17D Intermediate Copper Wire Drawing Line Chain Type for Cable Production

8.Advantages:



1).XINDACHANG(JINDA )has some world famous parts suppliers. Have high price performance ratio.



2).special lubrication system for the gears and bearing.



3).second section annealing system, outside electrically neutral (no current flow to other unit)



4).body and other key components and parts are produced by our own factory, quality is reliable.



5) Our company’s developing process in more than 10 years.





9. After-sale service:



Pre-sale training:



In order to guarantee the customers are able fully to operate the machine, if the customer need, we can help customer training, includes:



(1) Correct operating mode



(2) Correct maintenance way



(3) Removable simple problem our company for our machine product,



Since the shipment date, our company free after sale maintenance service guarantee period is:



A: 1 year for mechanical part,



B: 6 month for electrical part.



Main Product:



Cable making equipment

v Wire drawing machine (multiple wire)

v Rod breakdown machine

v Tin-coating machine Rigid frame stranding machine

v Annealing machine

v Copper, Aluminum, Aluminum Alloy, Brass, Wire drawing machine

v Wire and cable production line
